Measure once. Order with confidence.
Each line has its own measuring steps. Pick yours and follow along with a tape measure in hand.
How to measure LuxFit
For a perfect fit we measure from bead to bead, so your LuxFit shutters sit seamlessly without drilling.
LuxFit can only be installed on windows with PVC frames. It is not compatible with aluminium or timber frames.
Tools you'll need
- Metal tape measuremillimetres
- Pencil and notepador a notes app
- Step stool or ladderfor tall windows
- Credit cardfor checking bead depth
- Spirit leveloptional
- Phone or cameraoptional, for reference

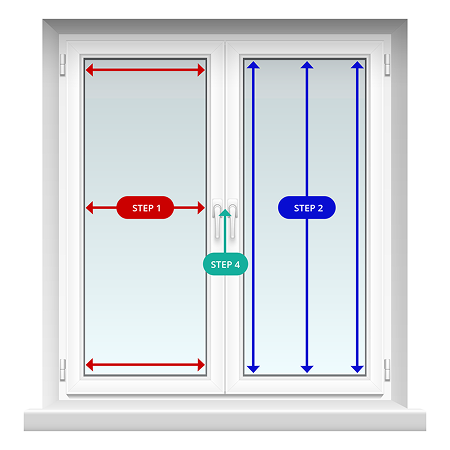

- 1

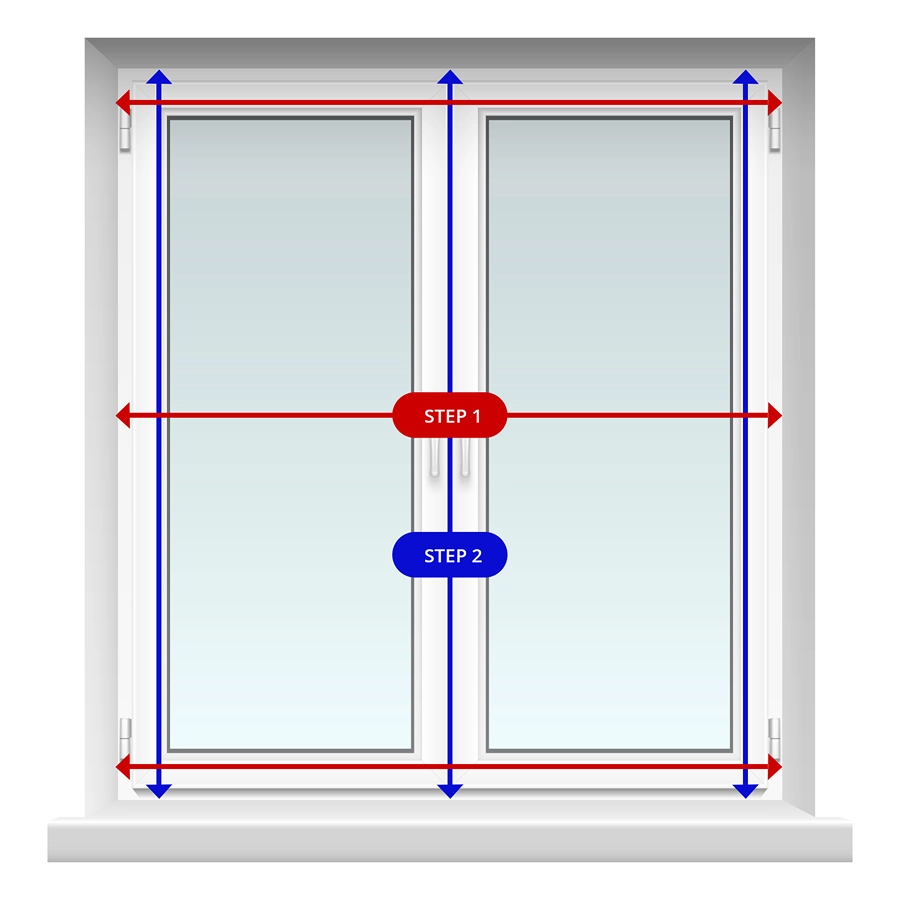

Measure the width
Measure the inside width of the frame, from bead to bead, at the top, middle and bottom. Record the smallest, to the nearest millimetre.
- 2
Measure the height
Measure the inside height from bead to bead at the left, middle and right. Record the smallest value.
- 3

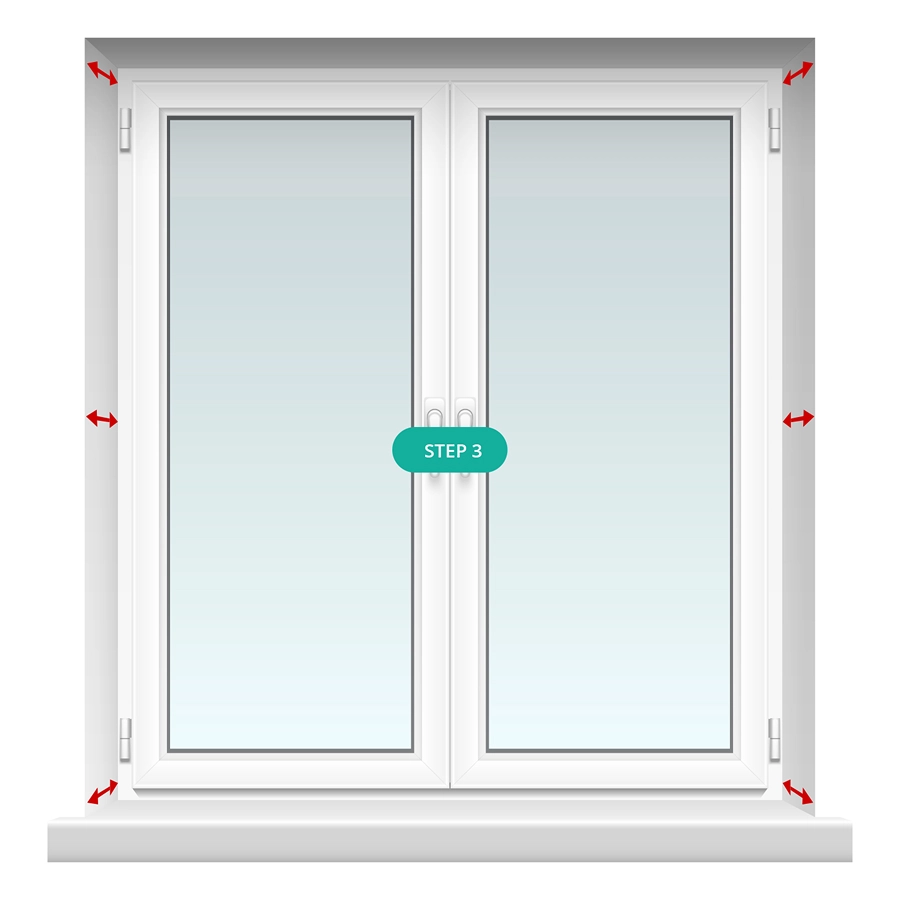

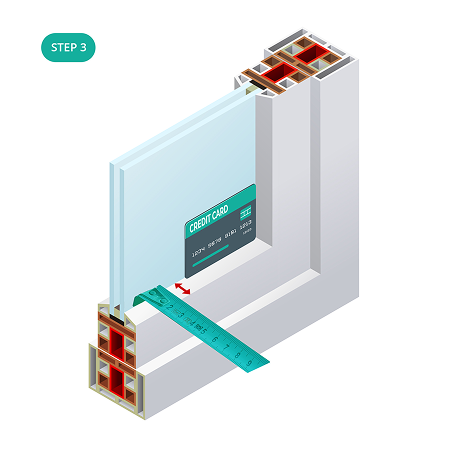

Measure the bead depth
This sets the right bracket size. Place a credit card flat against the glass and measure from the glass to the edge of the bead. Record the bead depth in millimetres.
- 4
Account for window handles
If your window has a handle, measure from the left bead to the pivot point of the handle. This lets us make an accurate rebate.

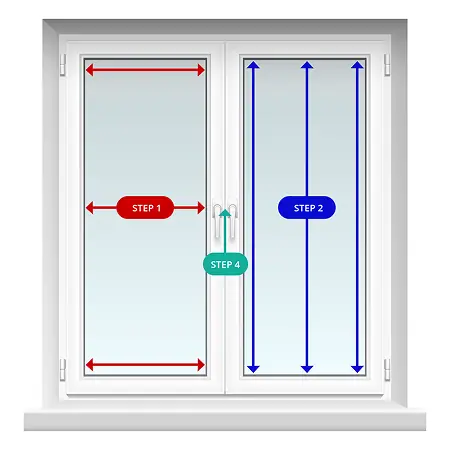

Step 1: Measure the width
Before you order
- Repeat the same measurements for any upper or secondary sections of the window.
- Always use the smallest width and height you measured.
- Double-check all figures before placing your order.
- Handles, vents or locks inside the recess can affect installation. Include their position.
